Valves
We also supply different types and size range of valves and actuators that comply with API, DIN, and ANSI standards. Our valves come in carbon steel, stainless steel, and special alloy materials, and are also available in different end connections; threaded, butt weld, flanged, and others.
|

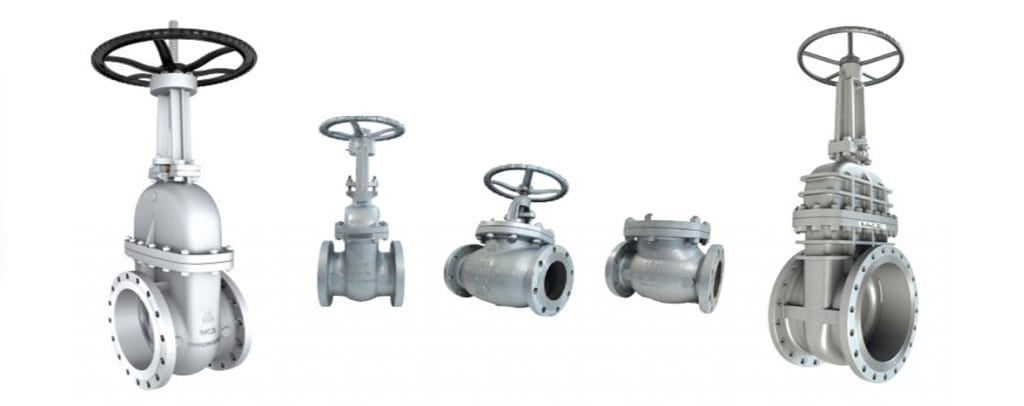

CAST STEEL GATE, GLOBE AND CHECK VALVES
|
|
Design Standards:
|
API 600, API 6D, ASME B16.34, API 603
|
|
Materail Grades:
|
WCA, WCB, WCC LCB, LCC, WC1, WC5, WC6, WC9, LC2, LC3 C5, C12, C12A, CF8, CF8M, CF8C, CF10, CG8M, CE8MN, CD6MN, CD3MN, Monel M30C, Monel M35-1, Monel CZ100, Inconel CY40
(Inconel 600), CW2M (Hastelloy C4), N12MV (Hastelloy B), CW12MW (Former
Hastelloy C-276), CW6M (New Hastelloy C-276), CU5MCuC (Incoloy 825), N7M
(Hastelloy B2), CW6MC (Inconel 625), 7. Aluminum Bronze like 95500, 95600, 9580
|
|
Sizes:
|
2” to 72″
|
|
Pressure Class
|
150# to 2500#
|
|
Ends:
|
RF, RTJ or BWE, (ASME B16.5, MSS-SP-44, B16.47)
|
|
Special features
|
Low fugitive emissions control,NACE Service either MR-01-75 or MR-01-03,By-Pass, Lantern rings, grease injectors,Damper and Counterweights for Check valves, Chain-wheel, Gear operation, Electric, Pneumatic or Hydraulic Actuation as per Customer
requirements.
|
|

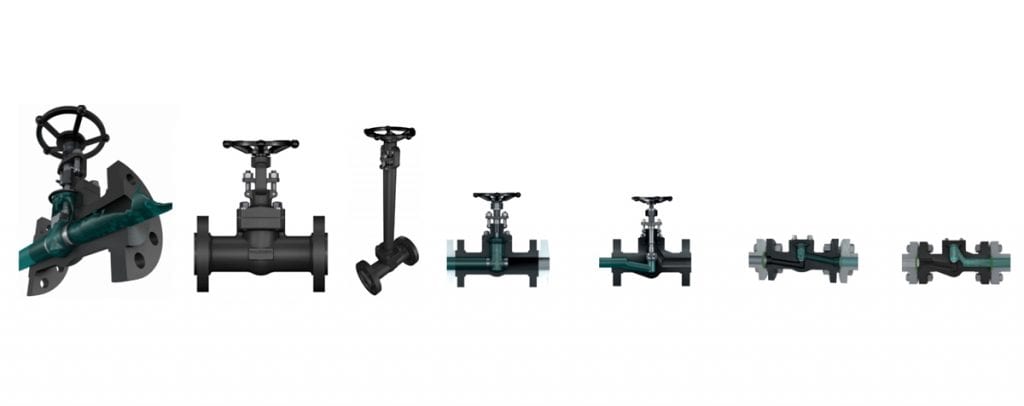

FORGED STEEL GATE, GLOBE AND CHECK VALVES
|
|
Design Standards:
|
API 602
|
|
Materail Grades:
|
A105,LF2, LF3, F1, F11, and F22, F5, F5a, F9, F304, F316, F304L, F316L, F51, F55, Inconel, Incoloy, Mone
|
|
Sizes:
|
1/4” to 2″
|
|
Pressure Class
|
800#, 1500# & 2500#
|
|
Ends:
|
FNPT, SWE, RF, RTJ & BWE.
|
|
Special features
|
T & Y Patterns, Bolted & Welded Bonnet, Low fugitive emissions control,NACE Service either MR-01-75 or MR-01-03.
|
|
TRUNNION MOUNTED BALL VALVE
|
|
Design Standards:
|
API 6D
|
|
Materail Grades:
|
A105 or WCB, LF2, LF3 or LCB, LCC, F316, F347 or CF8M, CF8C, F51 or CD3MN, F55 or CD3MWCuN.
|
|
Sizes:
|
2” to 60″
|
|
Pressure Class
|
150, 300, 600, 900, 1500 & 2500#
|
|
Ends:
|
RF, RTJ or BWE, (ASME B16.5, MSS-SP-44, B16.47)
|
|
Special features
|
Bolted Body or Welded Body, Metal to Metal Tungsten Carbide coating, Carbon steel body with Inconel 625 internal cladding, Meets Fire Test in accordance API-6FA, API-607, Full bore or reduce bore available, Double Block and Bleed, Anti-static device, Blow out proof system, NACE Service either MR-01-75 or MR-01-03
|
|

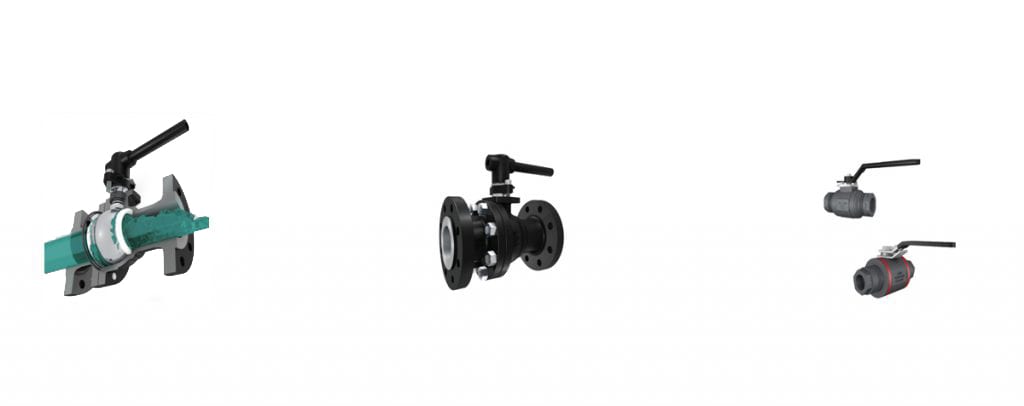

FLOATING BALL VALVES
|
|
Design Standards:
|
API 6D, MSS-72 & API-608
|
|
Materail Grades:
|
A105 or WCB, LF2, LF3 or LCB, LCC, F316, F347 or CF8M, CF8C, F51 or CD3MN, F55 or CD3MWCuN.
|
|
Sizes:
|
1/2” to 8″
|
|
Pressure Class
|
150, 300, 600, 900, 1500 & 2500#
|
|
Ends:
|
FNPT, SWE,RF, RTJ or BWE, (ASME B16.5, MSS-SP-44)
|
|
Special features
|
Meets Fire Test in accordance API-6FA, API-607, Full bore or reduce bore available, Anti-static device, Blow out proof system, NACE Service either MR-01-75 or MR-01-03
|
|
STEEL LUBRICATED PLUG VALVES
|
|
Design Standards:
|
API 6D
|
|
Materail Grades:
|
WCA, WCB, WCC, LCB, LCC, WC1, WC5, WC6, WC9, LC2, LC3, 5, C12, C12A, CF8, CF8M, CF8C, CF10, CG8M, CF3, CF3M, CG3M, CN7M (Alloy 20), CN3M (Alloy 20 modifid)
CT15C, CE8MN, CD6MN, CD3MN, Monel M30C, Monel M35-1, Monel CZ100, Inconel, CE3MN, CD3MNWCuN
|
|
Sizes:
|
2” to 36″
|
|
Pressure Class
|
150, 300, 600, 900, 1500 & 2500#
|
|
Ends:
|
RF, RTJ or BWE, (ASME B16.5, MSS-SP-44, B16.47)
|
|
Special features
|
Compensator Steel Plug Valves (bottom entry) & Lubricated Plug Valves (top entry), Mechanical Balance fiture to avoid jamming of the plug, Hand-wheel, Impact Hand-wheel, Chain-wheel, Gear operation, Electric, Pneumatic or Hydraulic Actuation as per Customer requirements
|
|

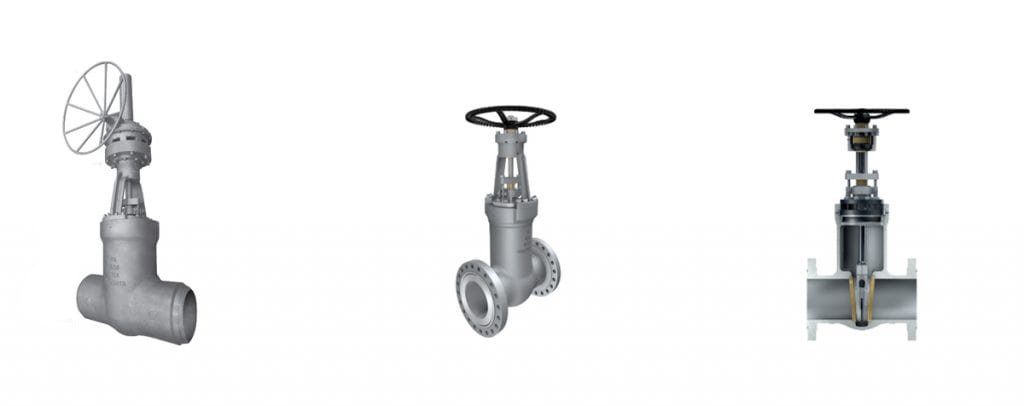

PRESSURE SEAL CAST STEEL VALVES
|
|
Design Standards:
|
ASME B16.34
|
|
Materail Grades:
|
WCA, WCB, WCC LCB, LCC, WC1, WC5, WC6, WC9, LC2, LC3 C5, C12, C12A, CF8, CF8M, CF8C, CF10, CG8M, CE8MN, CD6MN, CD3MN, Monel M30C, Monel M35-1, Monel CZ100, Inconel CY40
(Inconel 600), CW2M (Hastelloy C4), N12MV (Hastelloy B), CW12MW (Former
Hastelloy C-276), CW6M (New Hastelloy C-276), CU5MCuC (Incoloy 825), N7M
(Hastelloy B2), CW6MC (Inconel 625),
|
|
Sizes:
|
2” to 24″
|
|
Pressure Class
|
600# to 2500#
|
|
Ends:
|
RF, RTJ or BWE, (ASME B16.5, MSS-SP-44, B16.47)
|
|
Special features
|
Pressure Seal valves Gate, Globe, Stop Check, Globe “Y” Pattern, Stop Check “Y”, Flexible wedge or Parallel Slide disc for Gate valve., By-Pass, Lantern rings, grease injectors,Extra deep stuffig box
|
|

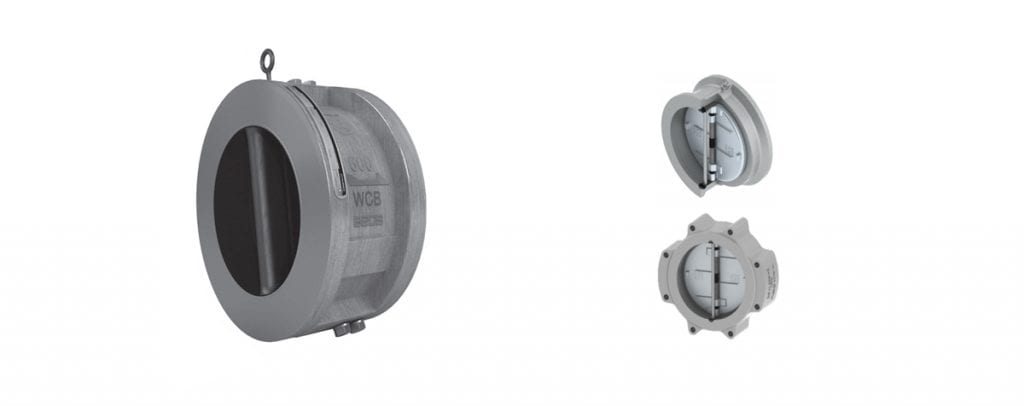

DUO CHECK CAST STEEL VALVES
|
|
Design Standards:
|
API 594
|
|
Materail Grades:
|
WCA, WCB, WCC LCB, LCC, WC1, WC5, WC6, WC9, LC2, LC3 C5, C12, C12A, CF8, CF8M, CF8C, CF10, CG8M, CE8MN, CD6MN, CD3MN, Monel M30C, Monel M35-1, Monel CZ100, Inconel CY40
(Inconel 600), CW2M (Hastelloy C4), N12MV (Hastelloy B), CW12MW (Former
Hastelloy C-276), CW6M (New Hastelloy C-276), CU5MCuC (Incoloy 825), N7M
(Hastelloy B2), CW6MC (Inconel 625),
|
|
Sizes:
|
2” to 36″
|
|
Pressure Class
|
150# to 2500#
|
|
Ends:
|
Wafer, lugged, Double Flange RF & RTJ
|
|
Special features
|
Compact body, one-piece wafer design, Spring loaded seat allows for smooth disc closure, preventing premature wear and tear, Dual plates offer maximum strength with minimum opening time, Full contact metal to metal seats maintain positive shut-off at minimum working pressure
|
|

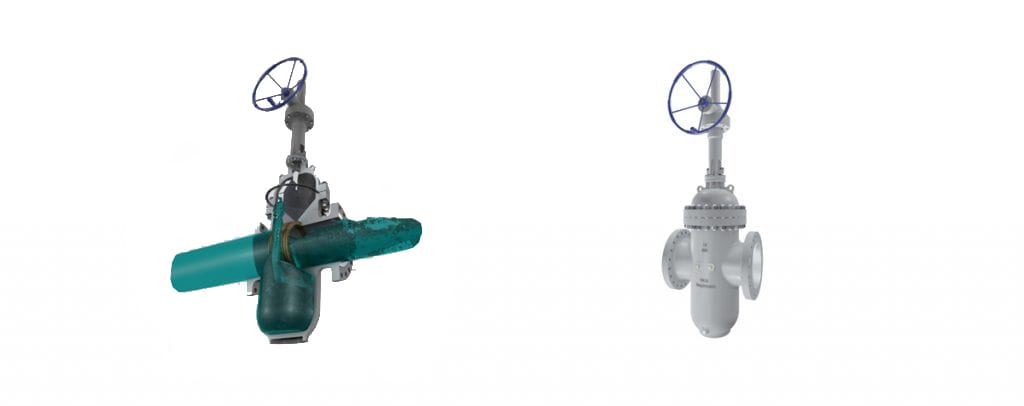

SLAB GATE VALVES
|
|
Design Standards:
|
API 6D
|
|
Materail Grades:
|
WCA, WCB, WCC LCB, LCC, WC1, WC5, WC6, WC9, LC2, LC3 C5, C12, C12A, CF8, CF8M, CF8C, CF10, CG8M, CE8MN, CD6MN, CD3MN, Monel M30C, Monel M35-1, Monel CZ100, Inconel CY40
(Inconel 600), CW2M (Hastelloy C4), N12MV (Hastelloy B), CW12MW (Former
Hastelloy C-276), CW6M (New Hastelloy C-276), CU5MCuC (Incoloy 825), N7M
(Hastelloy B2), CW6MC (Inconel 625),
|
|
Sizes:
|
2” to 48″
|
|
Pressure Class
|
150# to 1500#
|
|
Ends:
|
RF, RTJ
|
|
Special features
|
Full thru-conduit port to permit pass scrapers, pigs and wipers, Top entry for maintenance inline, Double block and bleed.Secondary seal seat grease injectors, Meets Fire Test in accordance API-6FA
|
|
EXPANDING GATE VALVES
|
|
Design Standards:
|
API 6D
|
|
Materail Grades:
|
WCA, WCB, WCC LCB, LCC, WC1, WC5, WC6, WC9, LC2, LC3 C5, C12, C12A, CF8, CF8M, CF8C, CF10, CG8M, CE8MN, CD6MN, CD3MN, Monel M30C, Monel M35-1, Monel CZ100, Inconel CY40
(Inconel 600), CW2M (Hastelloy C4), N12MV (Hastelloy B), CW12MW (Former
Hastelloy C-276), CW6M (New Hastelloy C-276), CU5MCuC (Incoloy 825), N7M
(Hastelloy B2), CW6MC (Inconel 625),
|
|
Sizes:
|
2” to 48″
|
|
Pressure Class
|
150# to 1500#
|
|
Ends:
|
RF, RTJ
|
|
Special features
|
Full thru-conduit port to permit pass scrapers, pigs and wipers, Top entry for maintenance inline, Double block and bleed.Secondary seal seat grease injectors, Meets Fire Test in accordance API-6FA
|
|
BUTTERFLY VALVES
|
|
Design Standards:
|
API 609, AWWA
|
|
Materail Grades:
|
A126 CI, WCA, WCB, WCC LCB, LCC, CF8, CF8M, CF8C, CF10, CG8M, CE8MN, CD6MN, CD3MN, 6A. Aluminum Bronze like 95500, 95600, 9580
|
|
Sizes:
|
2” to 72″
|
|
Pressure Class
|
125# to 300#
|
|
Ends:
|
Wafer, Lugged, Doubld Flange RF
|
|
Special features
|
Concentric, Double & Triple Offset
|
|

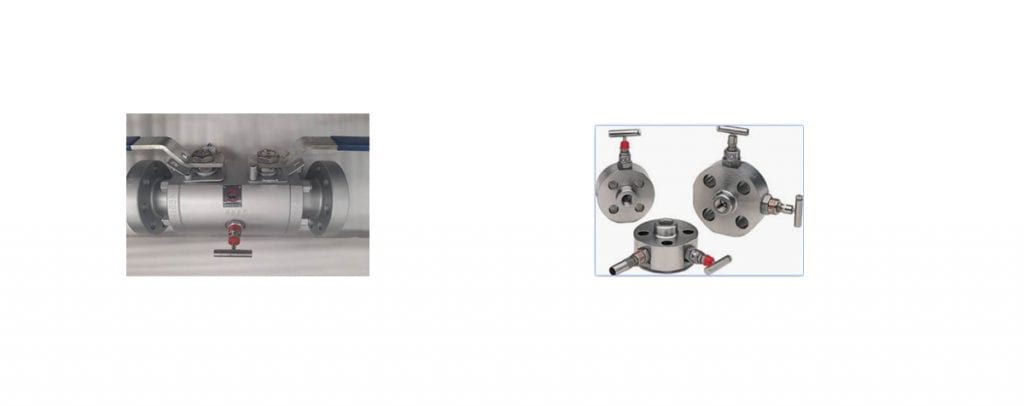

INSTRUMENTATION DBB VALVES
|
|
Design Standards:
|
API, MFRS
|
|
Materail Grades:
|
A105N, F60, A350, LF2, LF6, A182 F316L, F51, F44, F53, F55, Nickel Al – Bronze, Hastelloy C276, Inconel 625 or 825, Monel K 400 and 500 and Titanium Class 2
|
|
Sizes:
|
1/2” to 12″
|
|
Pressure Class
|
125# to 2500#
|
|
Ends:
|
MONOFLANGE, RF, RF X NPT,
|
|
Special features
|
INTEGRAL, MODULAR,COMPACT, NEEDLES, MONOFLANGES,MANIFOLDS,
|
We are the leading exporter, stockist and distributor of Valves in UAE, Middle East, GCC and Africa. We serve major local and international clients, including Fabricators, drilling contractors, offshore and marine engineering companies, and shipyards, as well as several other industrial portfolios of diverse industrial sectors.
